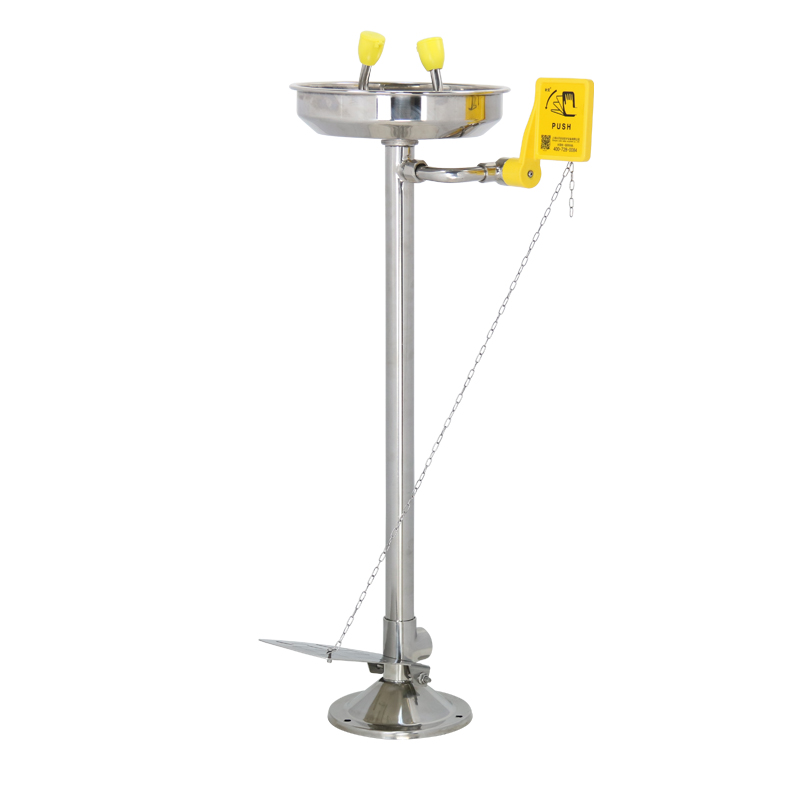

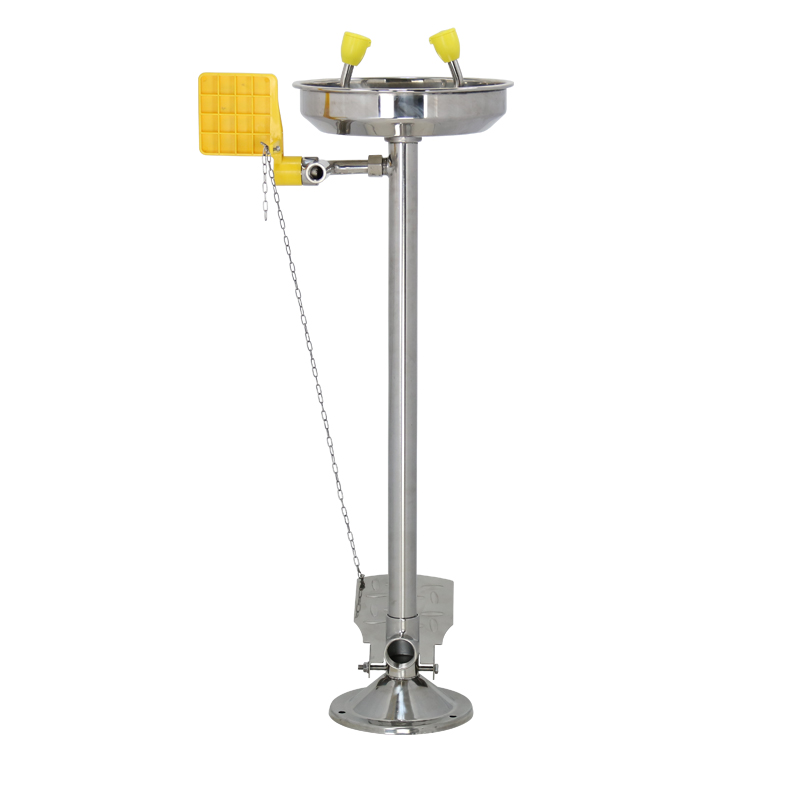

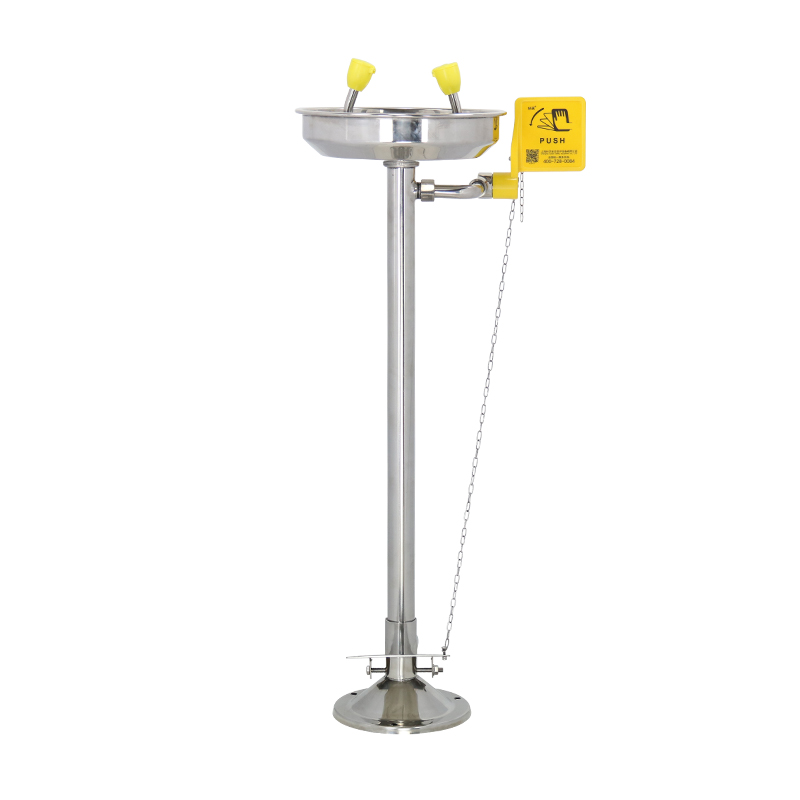

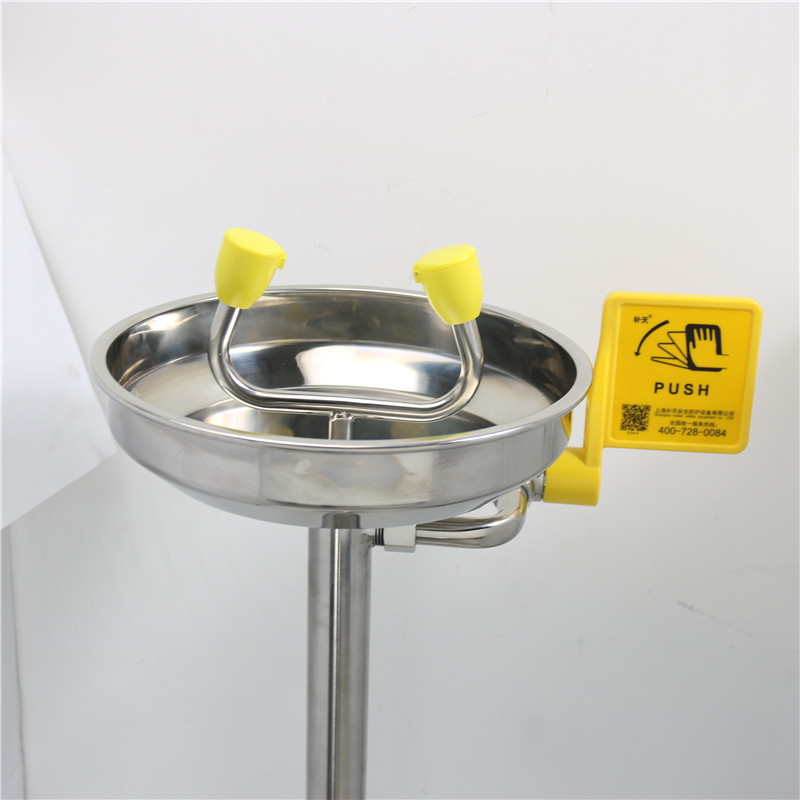

Free standing eye washer stainless steel vertical eye wash with foot operation

Free standing eye washer stainless steel vertical eye wash with foot operation

Quick Details

Design and manufacturing standards:ANSI Z358.1-2014
Product name:Vertical eye wash
Main body material:SS304(optional Q235 or SS316L)
Function:Eye washing
Working environment temperature:0~50℃
Applicable medium:Normal temperature drinking water or water that meets hygienic standards
Nominal pressure:1.0Mpa
Working pressure:0.2Mpa-0.4Mpa
Water inlet size:FNPT 1-1/2" (customization accepted)
Water outlet size:FNPT 1-1/4" (customization accepted)
Eye Wash flow:≥11.4L/min
Specially service:OEM,ODM
The gross weight:6KG
Size:750mm*300mm*250mm

Get A Quote

Free standing eye washer stainless steel vertical eye wash with foot operation



Festures:
1. Pedal, hand-foot linkage, more convenient operation. Push the pedal or push the hand push board, turn on the eye wash switch, turn off the hand push board, and turn off the eye wash switch.

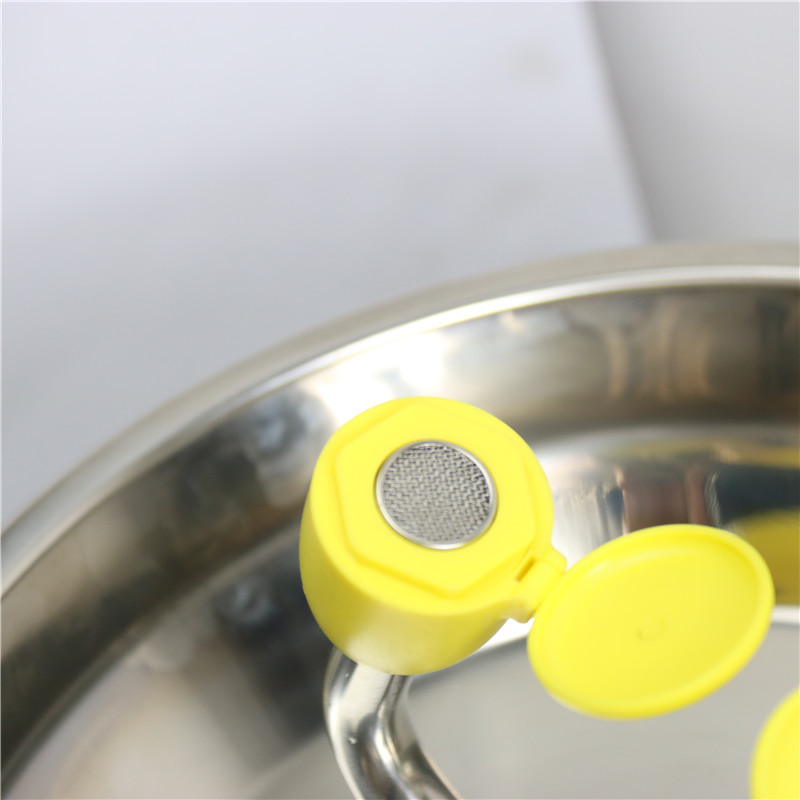

3. Eye wash head: Bed filtration that more effective to ensure clean water.
4. Switch: Hygiene, excellent abrasion resistance, the switch lifetime can be reached 100,000 times, and convenient maintenance and convenient part replacement. 5. Pipe:Special used for eye washer, precision Castingm

Details Images





After-sale service
One year warranty,free replacement if any parts are damaged in the warranty
Choose the cheapest and safest shipping company
Track the order until you get the goods
