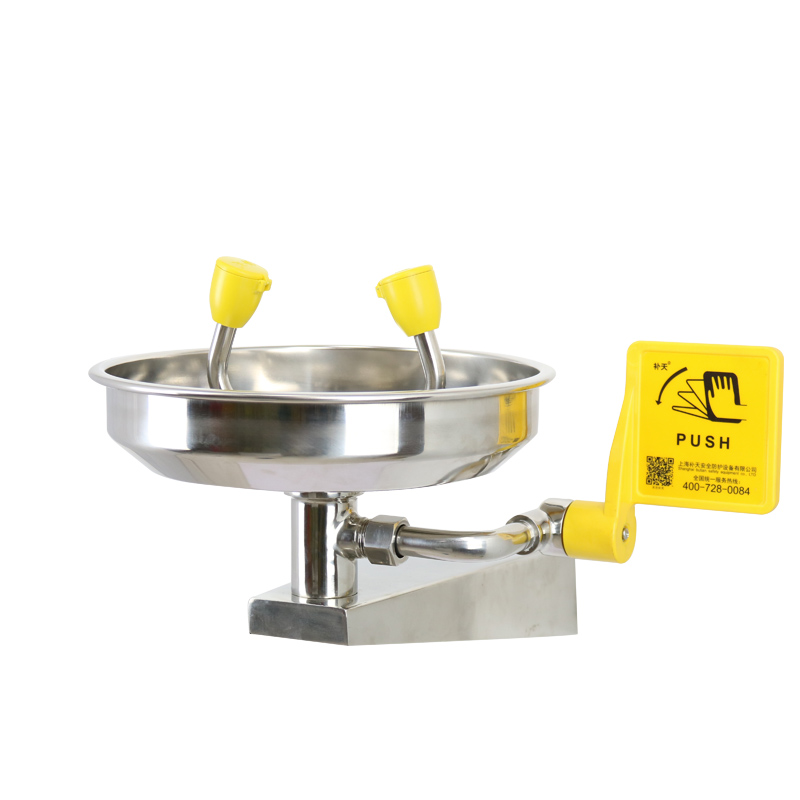

Eye washer stainless steel wall mount eye wash station with abs nozzle

Eye washer stainless steel wall mount eye wash station with abs nozzle

Quick Details

Design and manufacturing standards:ANSI Z358.1-2014
Product name:Wall mounted eye wash
Main body material:SS304(optional Q235 or SS316L)
Function:Eye washing
Working environment temperature:0~50℃
Applicable medium:Normal temperature drinking water or water that meets hygienic standards
Nominal pressure:1.0Mpa
Working pressure:0.2Mpa-0.4Mpa

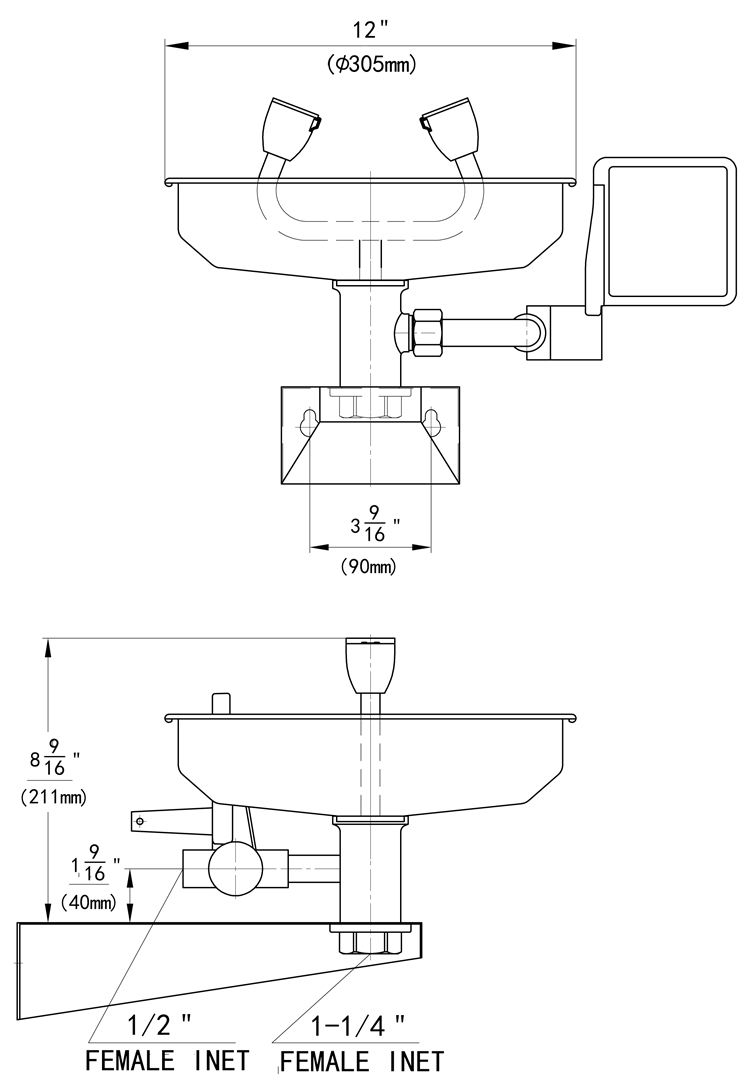

Water inlet size:FNPT 1-1/2" (customization accepted)
Water outlet size:FNPT 1 (customization accepted)
Eye Wash flow:≥11.4L/min
Specially service:OEM,ODM
The gross weight:3KG
Size:320mm*280mm*220mm

Get A Quote

Eye washer stainless steel wall mount eye wash station with abs nozzle





1. Use medium: it meets the standard of health standard

2.Main material: special SS304 stainless steel, which conforms to national standard, has good corrosion resistance of acid, alkali, salt and oil

3. The way to wash eyes switch: manual.When used, it is only needed to push the valve gently. The clean water comes out automatically from the nozzle, and the spray head is equipped with dust cover. When used, it can be automatically washed away with the flow of water.After the shut-eye switch is opened, the non-man will operate and will not shut automatically. Please turn off the switch and reset the dust cover when used.

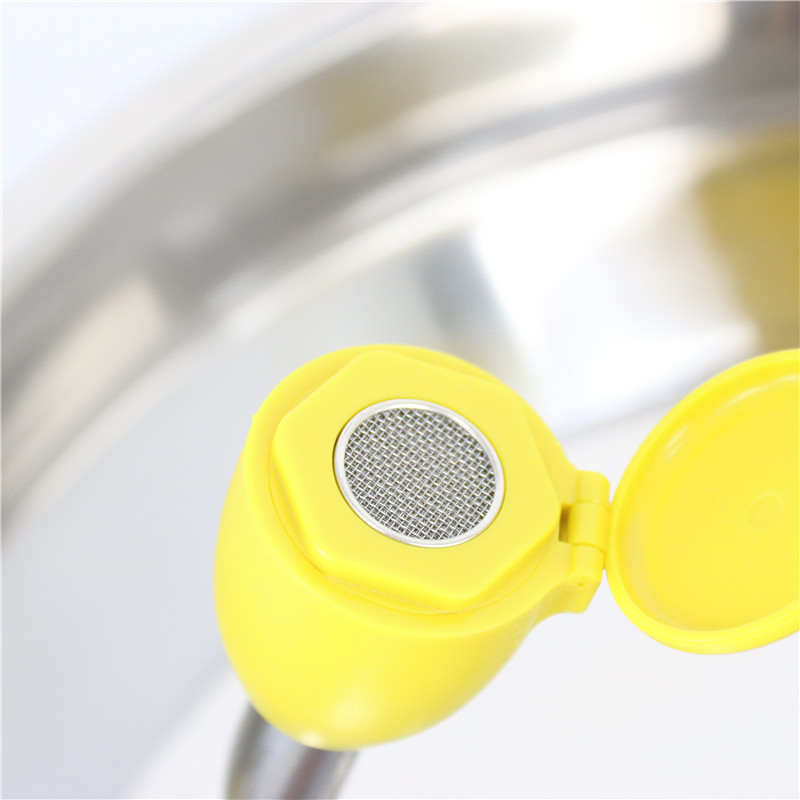

4. Eye nozzle: eye nozzle built-in multi-layer filter, effectively filter the impurities in water, the water flow into a foamy water, effectively prevent the impurities in water, or to the injured eye due to water flow ultra secondary damage nerve and the injured area.
The filter screen is easy to remove, easy to clean and easy to maintain.

5. When this product is suitable for the environmental temperature is higher than 0 ℃, should pay attention to below 0 degrees and environment freeze protection of pipes
