Emergency shower
|
Brand
|
Younus
|
|
Model
|
BTF11
|
|
Product name
|
Standard compound eye washer
|
|
Design and manufacturing standards
|
ANSI Z358.1-2014
|
|
Main body material
|
SS304（optional Q235 or SS316L）
|
|
Function
|
Eye washing + Shower
|
|
Working environment temperature
|
0~50℃
|
|
Applicable medium
|
Normal temperature drinking water or water that meets hygienic standards
|
|
Nominal pressure
|
1.0Mpa
|
|
Working pressure
|
0.2Mpa-0.4Mpa
|
|
Water inlet size
|
FNPT 1-1/4″ （customization accepted）
|
|
Water outlet size
|
FNPT 1-1/4″ （customization accepted）
|
|
Shower flow
|
≥75.7L/min
|
|
Eye Wash flow
|
≥11.4L/min
|
|
Specially service
|
OEM,ODM
|
|
The gross weight
|
13kg
|
|
Size
|
720mm*330mm*220mm
|
Products Description
Standard coumpound eye washer

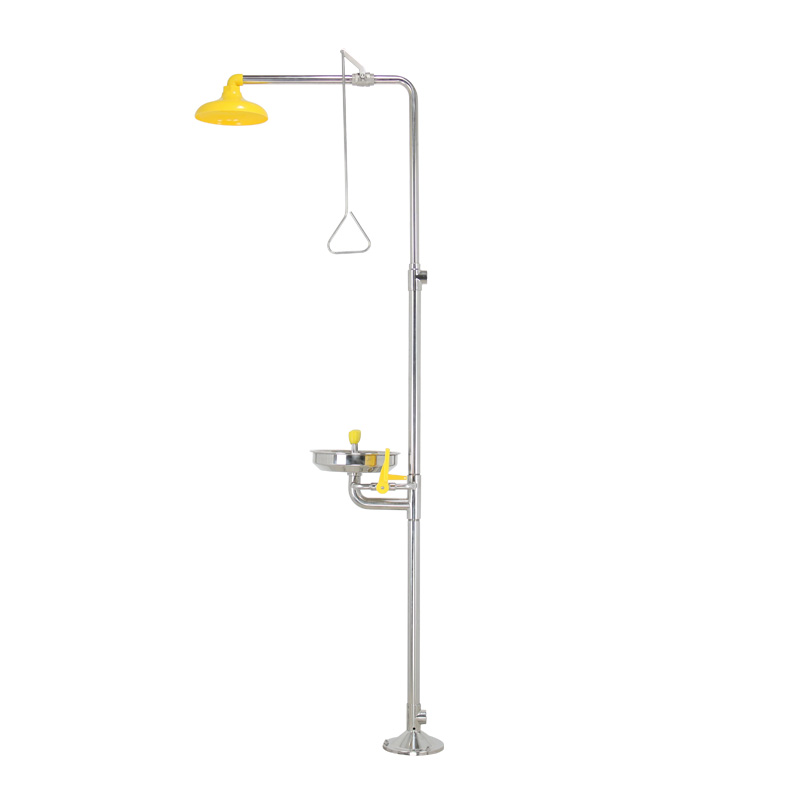

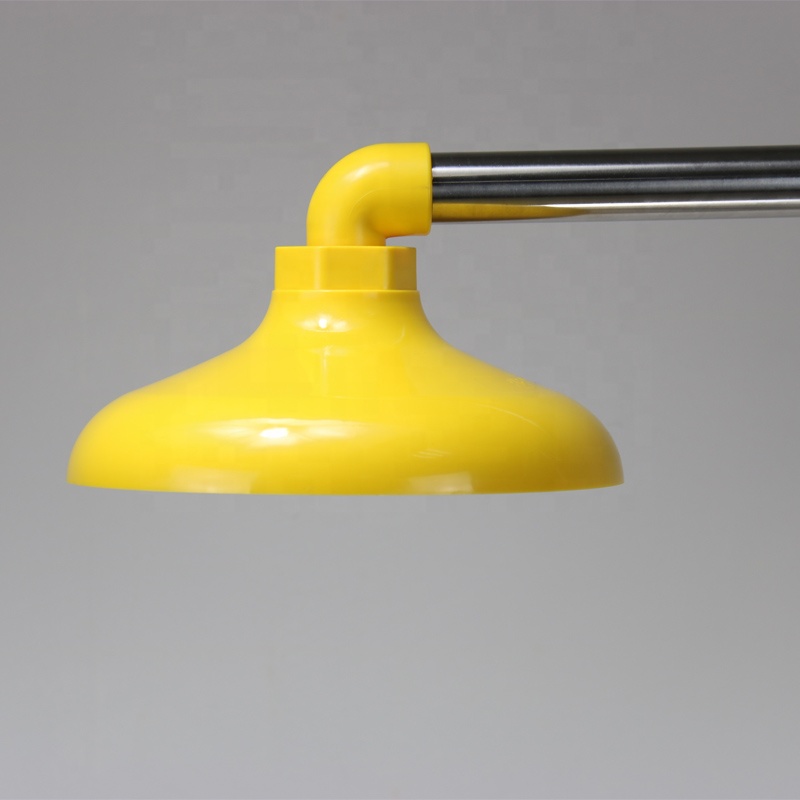

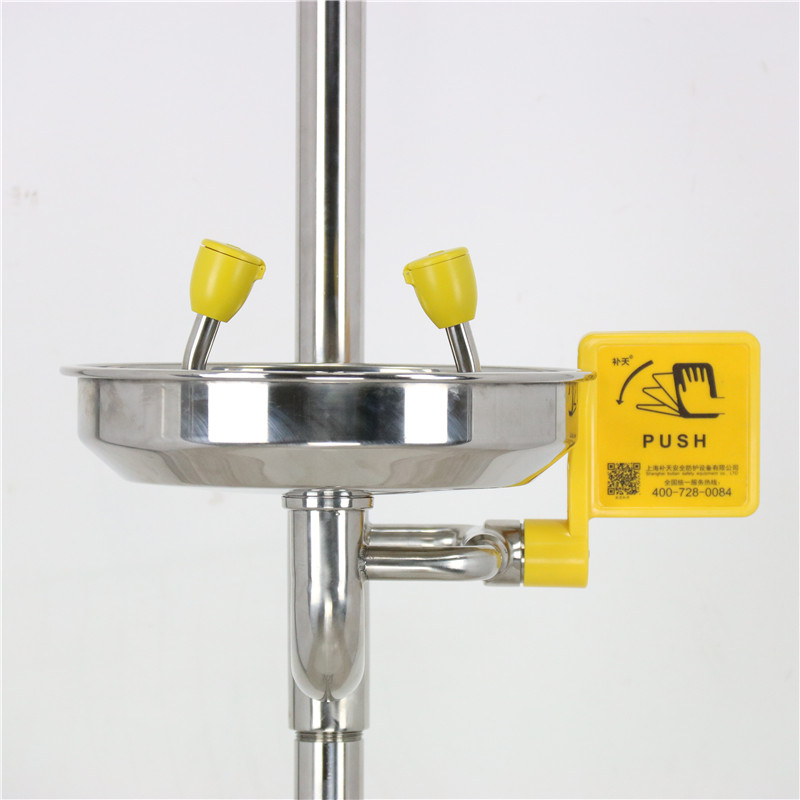

Combination drench shower with eyewash, ABS shower head and ABS eyewash bowl is the default (304 stainless steel is opainal). Standard combination drench shower/eyewash units save space and fit easily into any work environment. Shower valve operates quickly by a pull rod with a triangular handle. Shower provides a superior washdown with a more even spray pattern. Eye/face wash, operated by an ergonomic, highly visible push handle, provides effective wash down coverage and spray pattern. Integral strainer reduces debris in the water and also prevents clogging. Meet the standard of ANSI Z358.1-2014. 1 Year warranty.
Details Images
